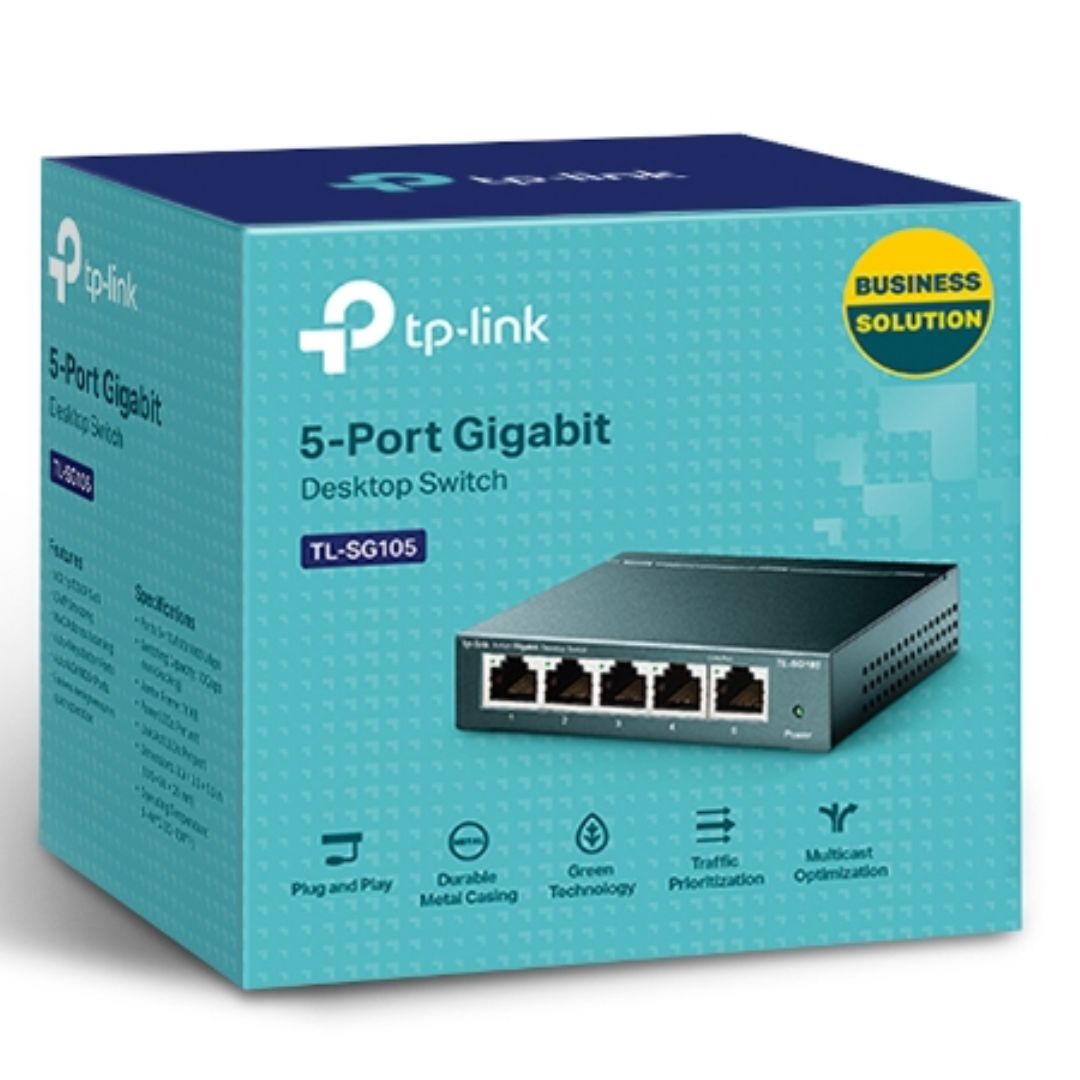

TP-Link TL-SG105 5port Switch Desktop,Gigabit,Steel Case

5-Port 10/100/1000Mbps Desktop Switch

5× 10/100/1000 Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX

Plug and play, no configuration needed

Supports 802.1p/DSCP QoS and IGMP Snooping functions

Durable metal casing, desktop/wall-mounting options, and a fanless design

IEEE 802.3x flow control provides reliable data transfer

Green Ethernet technology reduces power consumption

HARDWARE FEATURES

Standards and Protocols IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p

Interface 5× 10/100/1000 Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports

Fan Quantity Fanless

External Power Supply External Power Adapter (Output: 5 V DC / 0.6A)

LED Indicator System Power

Link/Act indicators per port built into each RJ-45 port

Dimensions ( W x D x H ) (100 x 98 x 25 mm)

Max Power Consumption 2.3 W (220 V/ 50 Hz)

Max Heat Dissipation 7.83 BTU/h

PERFORMANCE

Packet Forwarding Rate 7.4 Mpps

MAC Address Table 2K

Packet Buffer Memory 1 Mb

Jumbo Frame 16 KB

SOFTWARE FEATURES

Advanced Features Green Technology

802.3X Flow Control

802.1P/DSCP QoS (for V2 and later version)

IGMP Snooping

Transfer Method Store and Forward

OTHERS

Certification CE, FCC, RoHS

Package Contents 5-Port 10/100/1000Mbps Desktop Switch

Power Adapter

Installation Guide

Environment Operating Temperature: 0–40 °C (32–104 °F)

Storage Temperature: -40–70 °C (-40–158 °F)

Operating Humidity: 10–90% RH non-condensing

Storage Humidity: 5–90% RH non-condensing
